Automatic V Shape Bottom Bag Making Machine Applique V Shape Food
Bag Making Machine For Bread
Quick Detail
This machine forming the paper bag in one process from roll paper,
edge folding, tube forming, cutting, gluing, bottom folding, bottom
gluing and finishing bag. Easy operation, low power consumption,
high efficiency. It is an ideal machine for producing food bags
like bread bags, KFC bags and McDonald’s bags.
| Model | PRY-V01 |
| Paper Thickness Range | 30-100 GSM |
| Paper Bag Width Range | 80-270mm |
| Paper Bag Length Range | 120-400mm |
| Side Folding Range | 24-120mm |
| Production Precision | ±0.2mm |
| Machinery Speed | 150-500 pcs /min |
| Maximum paper roll Width | 900mm |
| Maximum. Paper roll Diameter | 1200mm |
| Total Power | 16 KW |
| Machine Weight | 5500KGS |
| Machine Color | White or other |
| Machine Size | 7300*2000*1850mm |
Features
1. This machine adopts touch screen man-machine interface,
regardless of correction, trimming can be arbitrarily set, alarm
and operation state displayed on screen, easy to operate. The
operation interface, English can be switched with each other.
2. With a touch screen and man-machine interface using the German
import PC programmable control system, real-time working status
display. (Film reel can be installed Puncture device, the machine
speed will be reduced)
3. Set the original German servo motor control with long motor, is
making more stable.
4. Printing color tracking system, using the German color
photoelectric tracking precision, with automatic calibration
function.
5.Photoelectric sensor limiting automatic control system, speed
correction roll on saving the machine adjusting time and reduce
waste.
6.Magnetic powder tension control with automatic constant tension
control system, automatic calculation of roll diameter to achieve
constant tension control
7.Material handling with pneumatic lifting structure combination,
can save manpower and reduce the loading and unloading time.
8..This machine adopts Germany original electrical system, to
ensure the machine more stable, reliable operation of the precision
of the high-speed users from any menace from the "rear".
9.Safety protection design of the machine has a new humanity; full
face cover design, fully guarantee the safety and product operator
environment.
Application
It is an ideal machine for producing food bags like bread bags, KFC
bags and McDonald’s bags.

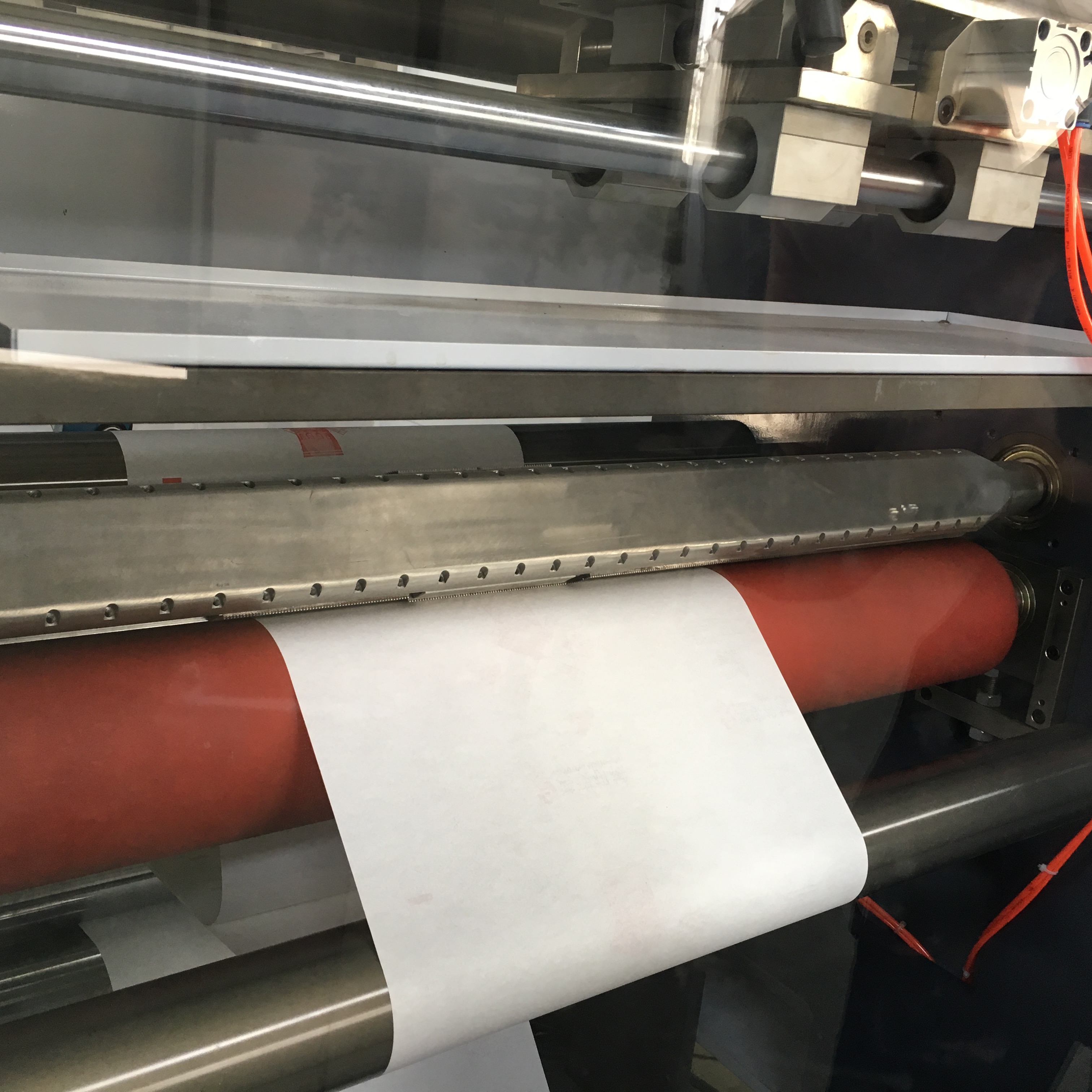

Detail of Image
