Automatic sheet feeding paper bag making machine with handle
application
Quick Detail
ZB1200C-430 automatic sheet-feeding paper bag making machine adopts
mechanical,electricity,light,gas integration technology, setting a
number of its proprietary technology, use sheet paper as raw

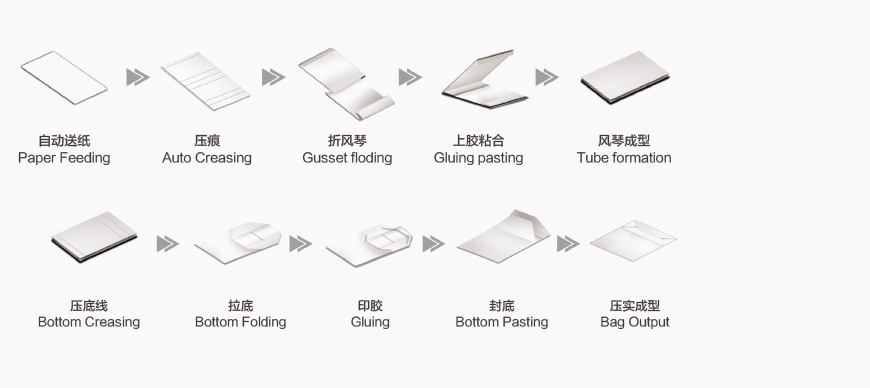

material ,can one-time finish: paper feeding,
positioning,die-cutting,tube forming, gusset forming, square bottom
folding and gluing automatic, and then compaction output.The
variable speed drive technology, combined with the system of
vertical and horizontal creasing, bottom folding realize trackless
bag molding process. using the PLC programmable control, frequency
control technology to realize the integral multi-dimensional
control, more centralized control and single point remote control
operating system . with characteristics of good quality and high
efficiency,its technology ranks leading level in domestic similar
products.
| Max.sheet(LXW) | 1200X600 |
| Min.sheet(LXW) | 540x300mm |
| Sheet Weight | 110-300gsm |
| Bag Width | 180-430mm |
| Bottom Width | 80-180mm |
| Speed | 50-70bags/min |
| Total Power | 15kw |
| Total Weight | 12T |
| Machine Size | 14800x2400x1800mm |
| Glue Type | Water soluble cold glue(hot-melt glue) |
Suitable Paper
| A | B | C | D | E |
| Max Size | 1200 | 600 | 180 | 430 | 500 |
| Min Size | 540 | 300 | 80 | 180 | 250 |
Suitable Paper: Kraft paper, art paper (including film laminated
paper) paper need pre-creasing
Advantage
The machine adopt Italy technology
The most reasonable machine for medium and top grade handbag
Detail of Image
Feeder: enhanced prestack paper feeder to realize non stop paper
feeding,greatly save the time to load and adjust raw paper.
Front and side guides positioning system
Hand crank creasing system
M side making guesst system
Big and small edge glue system: Standard configuration big and
small side gluing system,front and back joint edge both able to
paroduce
Paper blocked checking system
Screw rod adjusting bottom clip system:help to shorten the
adjusting time and improve the production efficiency in making
handbags with different specifications.
Bottom catch bag roller paper bag fall down alert system
Automatic collection system: Automatic counting,convenient to
collect bags
