Name: High Speed 2 Layer Paperboard Corrugated Box Machine Production Line 150mmin
Brand: PRINTYOUNG
Price: 1 USD

Add to Cart

High Speed 2 Layer Corrugated Paperboard Production Line

Quick Detail

Max. paper width	1800mm
Max. Width of corrugating roll	1850mm
Max. speed of machine	150m/min
Economic speed of production	80-120m/min
Flute type	A/B/C/E/F
Steam consumption: 1000kg/hour Working. pressure: 1.0—1.1MPa Max. pressure 1.3Mpa
Power requested	380V,50Hz,3-phase
Total power	80kw for general condition
Total length of line	30 meters.

Single facer paperboard production line

Detail of Image

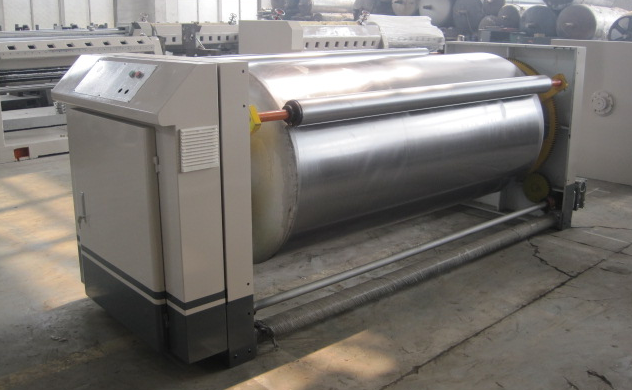

Hydraulic Mill Roll Stand

Core clutch Pneumatic break

Specification

Max. working width	1800mm
Min. working width	900mm
Max. paper mill dia	1500mm
Max working pneumatic pressure:	0.6-0.9Mpa
Power requirements:	380V, 50Hz
Length of track for carry paper mill	6000mm

Preheater

Specification

High Speed Fingerless Type Single Facer

Gimbal driver system. Individual gear type drive box

Overhead Bridge
