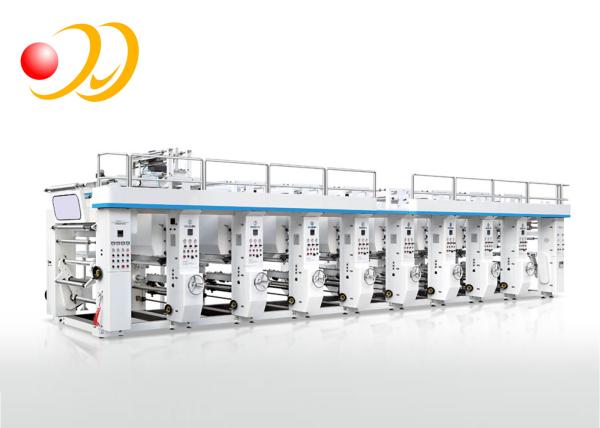

Automatic Six Colors Screen Printing Machine Rotogravure
Specifications :
model | AY800C | AY1100C |
Wed width | 800mm | 1100mm |
Printing speed | Max 80-100m/min | Max 80-100m/min |
Print cyl. dia | Ф100-350mm | Ф100-350mm |
Rolling material dia | Ф570mm | Ф570mm |
Print cyl. cross adjustable | 30mm | 30mm |
Print. cyl. longitudinal adjustable | 100° | 100° |
Registering accuracy | ±0.2mm | ±0.2mm |
Total power | 54kw | 63kw |
Weight | 8000kg | 9000Kg |
Overall dimensions(L×W×H) | 11050×2450×2700mm | 11050×2750×2700mm |
Introduction:
1.Usage: It is suitable for BOPP, PET, CPP, PVCD and combined film
and paper with the same properties. Its printing speed is
80-100m/min, while the mechanical speed is 120m/min.
2.Main transmission device: The main transmission device adopts
electrician frequency inverter of Shenzhen Inovance to control the
vector motor, the transmission reaches to gear case and then the
gears disconnected by the centrifugal gear.We can replace the
intermediate manually to realize dual side printing.
Performance:Convenient of registering ,.
3. Printing cylinder installing Device without Axis:The
installation of printing cylinders adopts air cylinder to pull the
core of axis to install the cylinders. The horizontal adjustment
adopts the movement of screw. Performance: reduce time of replacing
the printing cylinders,assure the boards to be concentric and
improve the quality of product.
4. Structure of ink scraper:
The ink scrapers can be adjusted up and down as well as its
positions. The pressure of scraper is controlled by dual air
cylinder. The horizontal movement adopts both the rotations of the
motor and movement of cam. Performance: lengthen the service of the
printing cylinders.
5. Pressing lifting Structure: The pressing lifting adopts dual air
cylinder to increase the pressure and solenoid velve to locate the
position, which is a protector for the air leakage of the cylinder
when the machine stops working .Performance: Assure the average of
pressure and color chromatic aberration.
6. Chromatic Mechanical Handles: The vertical registration adopts
clutch.
7. Material-Receiving and Feeding Device: The material receiving
and feeding adopts dual station. The materail-feeding shelf reverse
manually.The traction tension of the receiving and feeding material
device adopts automatic tension controlling. The material-receiving
device adopts moment motor controlling,the material-feeding adopts
magnetic powder tension controlling. Performance: Reduce the waste
materials and lower the cost.
8. Drying and cooling device: The oven has dual fans installed on
the board and the air-circulation and heat-recycle device. The
electric quartz tubes are installed averagely in each group of
ovens at their blowing mouth to heat .The temperature is controlled
by intelligent thermo-controller. Every top oven adopts centrifugal
fan to cool the film to assure the cooling of film. Performances:
save electric power.
