Waste Stripping Paper Die Cutting Machine For Corrugated Board
Specifications :
Model | AEM1080C |
Max. Paper Size | 1080x780mm |
Min. Paper Size | 450 x 400 mm |
Max. Cutting Size | 1075X770 mm |
Cutting Precision | ≤±0.125 mm |
Speed | 6800pcs/h |
Height Of Paper Feeding Pile | 1350 mm |
Height Of Paper Delivery Pile | 1 300 mm |
The Main Moto Power | 11Kw |
Motor Power | 17.8Kw |
Machine Weight | 14t |
Overall Dimensions | 6800x3780x2250mm |
Max.die-Cutting pressure | 300t |
Paper type |
|
Board paper | 0.12-2mm |
corrugated | ≤4mm |
Minimum gripper size | 7mm |
Description :
The machine made by professional precessing, wiht scientiflc
structure.Easy to operation,prefesssional safety performance,Iarge
cutting pressure to make high benefit.Suitable for papaer
board,corrugated board,PP,PVC,concave-convex printing etc.Wide
field of application,long service life.
Automatic feeding device
The device use European technology strong suction head. 4 sucktion
5 deliver fuction, adjustable suction duct, air absorption device
on both sides to ensure the feeding smooth, stable. according to
paper style and different angle of bend to make adjustment for get
wild range of pplication. 2 group of laser control device to avoid
the collision, with unstop feeding systerm to improve work
efficiency.
Die Cutting
The casting made by high strength resin sand process, air clutch to
drive the high precision worm and worm wheel to ensure less
deformation when get die cutting stress, smooth running in high
speed. High speed intermittent device drived Germany chain,
aluminum alloy with special process, double location to ensure the
precision. The frame, air lock device, turnover device to change
the mould easily. The stainless steel bottom plate can use 5+2 type
groups(optional) to get more easy for second mould change,
concave-convex cutting, replace the mould, also save time and cost.
Automatic pressure adjustment device(optional) to adjust the
pressure more easy and
controllable .
Feeding
adobt synchronous transport, smooth running, feeding shelves with
air spring can make operation more easily. There are Push, pull,

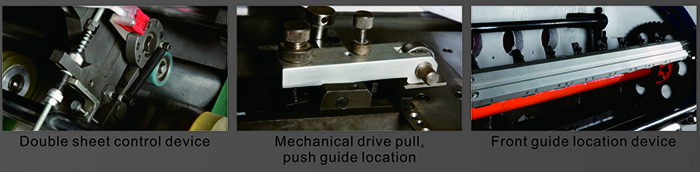

dual-purpose type side gauge on the both of sides, with adjustable
front gauge location device, imported laser location device to make
location more precision. Also have empty sheet, skew sheet, double
sheet control device to ensure the feeding precision, smooth,
reduce the waste of paper. single point clutch function can make
feeding and cutting separation anytime or synchronous combining, it
makes operation more easily.
Stripping
The stripping device made with above frame, middle frame, below
frame.These 3 linkage frame can transport power easily, camshaft
curvilinear motion, it can improve the stability of tripping. with
middle line frame can fast change the mould. The preset shelves
(optional) can make Pre typesetting out of machine to reduce the
typesetting time. Stripping air stopped device to extend the
service life.
Delivery
Adobt mechanical drive brush press paper device, with bidirectional
blowing device to devlier paper smoothly. Set the Speed reduction
or stop delviery after paper's full, also can choose unstop deliery
with vice delivery device, take sample with air control, make lable
for any number of piece paper, setting auotmatic stop after reach
setting pieces function.
