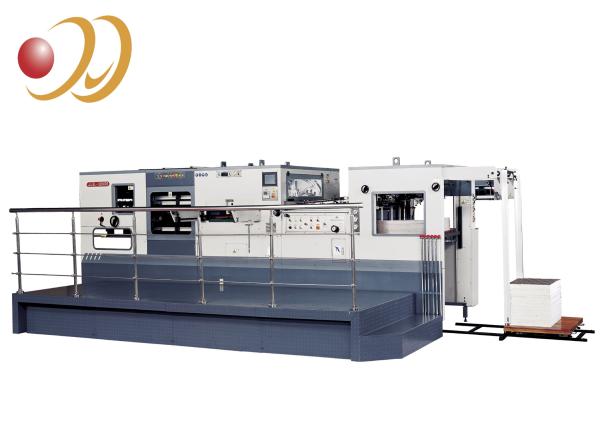

PVC Stripping Station Paper Die Cutting Machine SL - 1060MPB - Ⅱ
Specifications :
Max. Sheet Size | 1070×790 mm | Min. Sheet Size | 450×360 mm |
Max. Die Cutting Size | 1060×780 mm | Min. Front Margin | 5 mm |
Die Cutting Precision | ±0.1 mm | Max.Die Cutting Pressure | 250 T |
Cardboard Specification | 100～2000 g/m2 | Corrugated Paper | ≤4 mm |
Max. Die Cutting Speed | 7500 sheet/h | Max. Speed with Stripping | 6500 sheet/h |
Max. Height of Feeding Pile | 1630 mm | Max. Height of Delivery Pile | 1350 mm |
Total Power | 22 KW | Total Weight | 22 T |
Overall Size(L×W×H) | 7460×3930×2530 mm |
|
|
Description :
The SL-1060MPB-Ⅱ automatic die cutting and creasing machine with
stripping station is pivotal equipment, which is designed for die
cutting, creasing and cold embossing paper products such as paper
cassettes, box board containers, paper trademarks, etc., Unique
drive gears are adopted such as high-precision indexing mechanism,
pneumatic closed up, pneumatic clutch, overpower protection,
electric compression relief, etc., to ensure stable and high speed
running of the machine. This machine is equipped with practical and
reliable mechanisms such as pre-stack device, secondary feeding
device, speed change paper feeding mechanism, automatic secondary
delivery mechanism, pneumatic sampling, automatic timing
lubricating device, cooling facility for oil, etc., which ensure
the excellent performance of the machine. Eletrical components and
driving elements of internationally known brands are adopted to
ensure die cutting precision and reliability of running. PLC and
electronic cam monitor and display the electric control system,
which is convenient for fault diagnosis. Man-machine interface
monitors machine state displaying running instructions, trouble
location, troubleshooting to fully actualize man-machine
communication. Industry refrigerator of electrical cabinet ensure
that electric components work stably at uniform temperature.
