Automatic Carton Folder Gluer Machine With Grash Lock Bottom

Specifications:

1, Usage paper:180~650g/m2 Paperboard, E corrugated board

2, Box forming:straight line, crash lock bottom, double side, multi-functional side glue(optional)

3, Speed:300m/min

4, Electric:4kw, AC380V (ZH-580S); 5.5kw, AC380V (ZH-780S); 7.5kw, AC380V (ZH-980S)

5, Weight:3000kg (ZH-580S); 3500kg (ZH-780S); 4000kg (ZH-980S)

6, Dimension:8600×1000×1400mm (ZH-580S); 9000×1200×1400mm (ZH-780S); 10000×1400×1400mm (ZH-980S)

Description:

1. The whole machine's steel frame adopts laser cutting, after-punching folding. So the structure is more reasonable, assembling is more accurate and running is more stable.
2. It adopts synchronous belt driving. Synchronous driving is faster, noise-lower and safer.
3. Adopts PLC and frequency speed regulator.
4. New human-oriented design, easier operation, decreased test run time, better university, various complicated box making.
5. Can be applied to crash lock box, pre-fold box and straight line box.
6. Adopts cold and hot-melt glue system(optional).

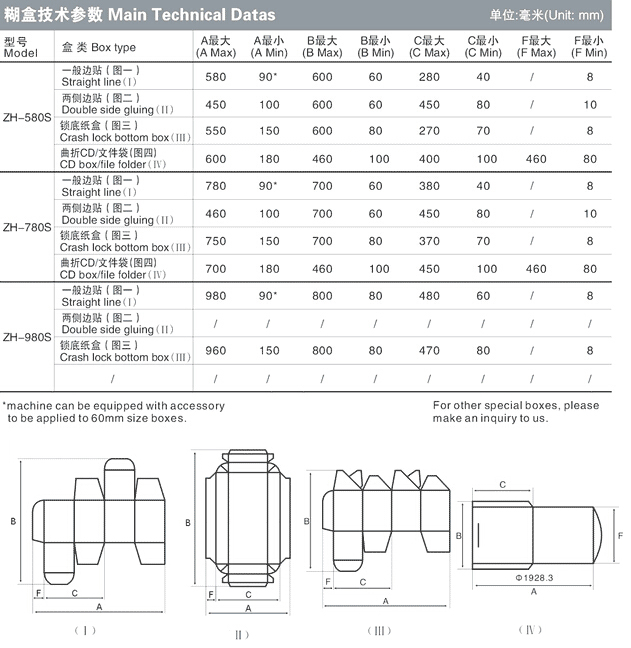

Technical Data:
