    PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : PRYJG-150
    Certification : CE
    Price : US 21000 Set
    Payment Terms : T/T
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    PRYJG-150 Large Paper Tube Core Making Machine 1 - 15mm Wall Thickness

    PRYJG-150 Paper Tube Making Machine

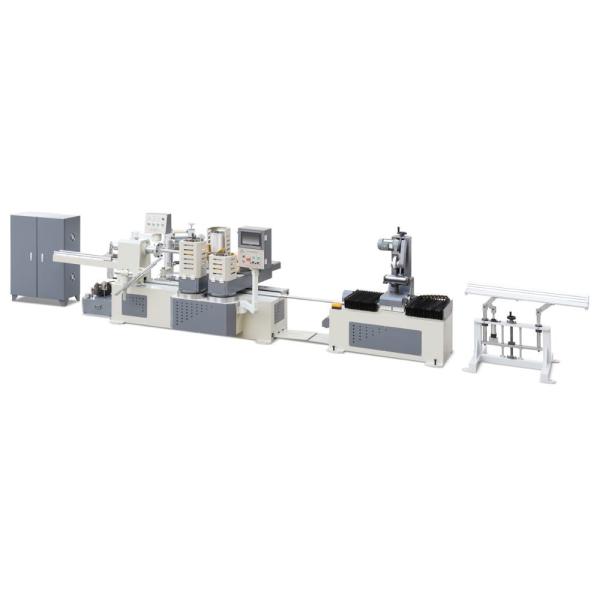

    Below picture is for Servo Controlled machine (split type) and just for reference.
    Common machine is integral type (cutting part connect together with winding part)
    Technical Parameters
    PRYJG-150 Paper Tube Making Machine
    Technical Parameter
    Paper Layer
    25 Layers
    Inner Diameter
    50 - 250mm
    Wall Thickness
    1 - 15 mm
    Winding Speed
    1 - 25 m/min
    Speed Regulation
    by inverter
    Winding Heads
    four heads double belts
    Shaft Fixing
    by flange
    Cutting Blade
    high Speed Steel Blade
    Cutting Length
    1000 - 5000 mm
    Gluing Way
    double sides
    Length Fixing
    by infrared
    Working Air Pressure
    0.6 Mpa
    Operator
    1 - 2 persons
    Measurement & Weight
    Measurement
    4600 * 1950 * 1900 mm
    Working Space
    10000 * 5000 mm
    Total Weight
    6700 kgs
    Control System
    Main Motor
    15 kw wannan
    Inverter
    schneider
    PLC
    xinjie
    Operating Panel
    panel master
    Electric Components
    schneider
    Pneumatic Components
    jingwei
    Bearing
    haerbin
    Power Supply
    380 V 3 Phase 50 Hz
    Main Configurations
    Paper Reel Stand
    24 layers integral type
    Gluing System
    24 layers spraying type
    Inner Paper Stand
    1 set
    Tube Unloading Shelf
    1 set
    Mandrel Shaft (Mold)
    2 pieces
    Belt
    4 pieces
    Blades
    5 pieces
    Useful Tool
    1 set
    Configuration
    Four-heads double-belts spiral winding
    Online cutting system – controlled by AC motor;cutting length 1000-5000mm
    Equipped with 24 layers paper reel stand *1set
    Equipped with 24 layers spraying glue unit *1set
    Equipped with inner paper stand * 1 set
    Finished tube unloading shelf * 1 set
    Applications
    This machine is used Forming paper tube from material paper and glue.
    Q1.Are you a manufacturer or a trading company?
    A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
    Q2.What is the machine warranty?
    A:One year.After the warranty,we still provide technical support to buyer at low cost.
    Q3.What is the production time while placing order?
    A:Normally about 10-20 days.
    Q4.What is the delivery time?
    A:15-30days after deposit.
    Q5.Can your company handle shipping for customers?
    A:Yes,just give us destination sea port or container yard.
    Q6.Does the packing strong?
    A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
    Q7.How about the machine installation and training?
    A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
    Q8.Do you have machines in stock?
    A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
    Q9.How can you assure the machines’ quality?
    A:Each machine will be test running at least 24 hours before delivery to assure the quality.
    And during the warranty,we will give spare parts for free if machine has any problem.
    Q10.Do you inspect machines or test running before packing?
    A:Of course we do.We have QC department to debug the machine before packing.
    If you want to use specific material to do the test running,you need to pay for the cost of the material.
    Q11.What’s the payment term?
    A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
    Q12.Do you accept factory visiting?
    A:Warmly welcome for your visiting.
    Q13.How many years are you in printing field?
    A:The Shanghai company since in 2008,the factory is more than 25years.
    Q14.How many clients do you have?
    A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
