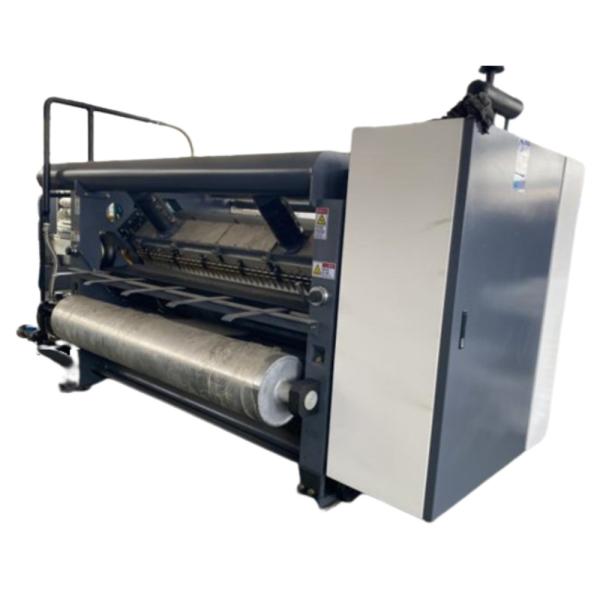

    PRY-10 E Flute 50CrMo Alloy Steel Corrugated Roll Cardboard Box Single Facer Machine

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : PRY-10
    Certification : CE
    Price : US 25000 Set
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    PRY-10 E Flute 50CrMo Alloy Steel Corrugated Roll Cardboard Box Single Facer Machine

    PRY-10 Single Facer Machine
    Features
    ★Adopt hood-suction structure with high-pressure fan.Air suction with silencing device,air source and electrical control centralized in the same operating cabinet,distance from the host not less than 1.5 meters,the operating side of the whole closed cover.
    ★Wall plate cast iron structure,wall plate thickness of 130mm.
    ★Corrugator roll material is 50CrMo alloy steel,after adjusting and tempering,mid-frequency quenching,surface polishing,corrugator main roll diameter 292mm,surface hardness HRC over 50 degrees,hard chrome plating.The key parts of tile roller and pressure roller bearing adopt high temperature resistant bearing.
    ★Cylinder control is sensitive to the gluing,copper plate scraping,clean,manual blocking board control the width of the glue.(Optional electric adjust glue width and automatic glue control function)
    ★The preheating roller is made of seamless steel pipe 320mm from Tiangang.
    ★Pressure roller can stop rotation,transmission part adopts synchronous belt drive.
    ★Synchronous belt drive,energy saving,high efficiency,maintenance-free,frequency conversion motor drive.
    Technical Parameters
    PRY-10 Single Facer Machine
    Model No.
    PRY-10
    Working Width
    1400 mm
    Design Speed
    100 m/min
    Economic Speed
    60 - 80 m/min
    Feeding Size
    1450 - 850 mm
    Highest Steam Temperature
    200 ℃
    Highest Steam Pressure
    1.2 Mpa
    Working Power
    380V 50Hz 17KW
    Configuration
    Part Name
    Craftsmanship
    Specification
    Material
    Surface Treatment
    Corrugated Roller
    Main Roller¢292 mm
    50CrMo Alloy Steel
    Tungsten Carbide Treatment
    Pressure Roller
    ¢268 mm
    45#
    Hardened Round Grinding Chrome Plating Polishing
    Glue Roller
    ¢215 mm
    45#
    Round Grinding and Pressing Pit Mesh Chrome Plating
    Doctor Roller
    ¢128 mm
    45#
    Round Grinding Chrome
    Preheat Roller
    ¢320 mm
    Q235B
    Round Grinding Chrome
    Paper Guide Roller
    ¢110/85 mm
    45#
    Round Grinding Chrome

    Q1.Are you a manufacturer or a trading company?
    A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
    Q2.What is the machine warranty?
    A:One year.After the warranty,we still provide technical support to buyer at low cost.
    Q3.What is the production time while placing order?
    A:Normally about 10-20 days.
    Q4.What is the delivery time?
    A:15-30days after deposit.
    Q5.Can your company handle shipping for customers?
    A:Yes,just give us destination sea port or container yard.
    Q6.Does the packing strong?
    A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
    Q7.How about the machine installation and training?
    A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
    Q8.Do you have machines in stock?
    A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
    Q9.How can you assure the machines’ quality?
    A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
    Q10.Do you inspect machines or test running before packing?
    A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
    Q11.What’s the payment term?
    A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
    Q12.Do you accept factory visiting?
    A:Warmly welcome for your visiting.
    Q13.How many years are you in printing field?
    A:The Shanghai company since in 2008,the factory is more than 25years.
    Q14.How many clients do you have?
    A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
