PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine

Shanghai Printyoung International Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine from wholesalers

    Buy cheap PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine from wholesalers
    • Buy cheap PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine from wholesalers
    • Buy cheap PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine from wholesalers

    PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : PRYFQ-150
    Certification : CE
    Price : US 14000 Set
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

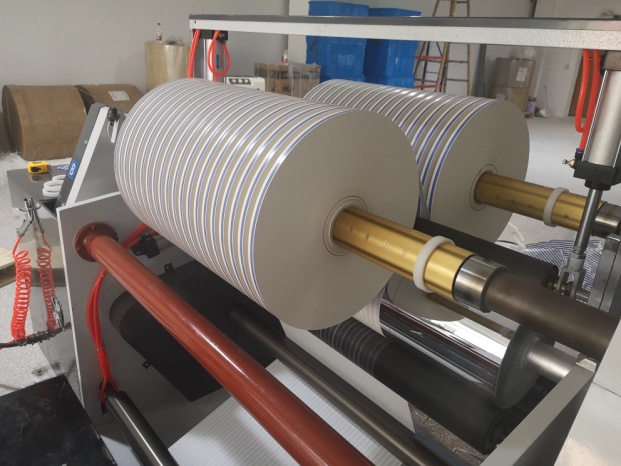

    PRYFQ-150 Cash Register Kraft Thermal Paper Roll Slitter Rewinder Machine

    PRYFQ-150 Paper Slitter Rewinder
    Features
    The machine consists of corrective unwinding institutions,cutting structure,the rolling bodies,transmission and electrical control.
    Technical Parameters
    PRYFQ-150 Paper Slitter Rewinder
    Material Paper
    20 - 120 g/m2
    Max Unwinding Diameter
    1000 mm
    Max Rewinding Diameter
    600 mm
    Max Slitting Width
    700 mm
    Air Shaft OD
    76 mm (3”)
    Working Speed
    10 - 150 m/min
    Power
    7.5 kw
    Dimension
    2100 * 1300 * 1000 mm
    Weight
    1700 kgs
    Configuration

    Unwinding Part

    The device has a manual aspect of offset can be eliminated due to the tension of raw material at both ends arising from bohou or paper core non-circularity different and wrinkled.Unwinding tension to the high linear magnetic powder brake actuator output torque balancing the tension fluctuation can be reduced to a minimum.

    Slitting Part

    The agency uses carbide precision disc knife (slitting relatively thick aluminum foil,paper and other materials) or (and) straight knife cutting (slitting general plastic film),neat incision,long life,cutting up and down knife shaft width adjustment processing,between the upper and lower blade shaft gear speed matching.Turning the handwheel implementation under the knife,the knife continues to rotate automatically rely.

    Rewinding Part

    The agency uses the left-right axis biaxial winding winding with pressure arm balance internal and external pressure.The transmission uses two independent magnetic particle motor drive uniaxial tension adjustable.

    Transmission Part

    The inverter is used to control the main motor operation,convenient lifting speed,the speed adjustment the excessive soft,smooth.
    Drive mode:General inverter control of AC motor drive
    Specification:7.5KW exchange motor
    Supporting inverters (domestic well-known brand,quality assurance)
    Q1.Are you a manufacturer or a trading company?
    A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
    Q2.What is the machine warranty?
    A:One year.After the warranty,we still provide technical support to buyer at low cost.
    Q3.What is the production time while placing order?
    A:Normally about 10-20 days.
    Q4.What is the delivery time?
    A:15-30days after deposit.
    Q5.Can your company handle shipping for customers?
    A:Yes,just give us destination sea port or container yard.
    Q6.Does the packing strong?
    A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
    Q7.How about the machine installation and training?
    A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.
    You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
    Q8.Do you have machines in stock?
    A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
    Q9.How can you assure the machines’ quality?
    A:Each machine will be test running at least 24 hours before delivery to assure the quality.
    And during the warranty,we will give spare parts for free if machine has any problem.
    Q10.Do you inspect machines or test running before packing?
    A:Of course we do.We have QC department to debug the machine before packing.
    If you want to use specific material to do the test running,you need to pay for the cost of the material.
    Q11.What’s the payment term?
    A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
    Q12.Do you accept factory visiting?
    A:Warmly welcome for your visiting.
    Q13.How many years are you in printing field?
    A:The Shanghai company since in 2008,the factory is more than 25years.
    Q14.How many clients do you have?
    A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
