    380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : NFM-ER1080
    Certification : CE
    Price : US 50700 Set
    Payment Terms : L/C, T/T
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll

    Products Description

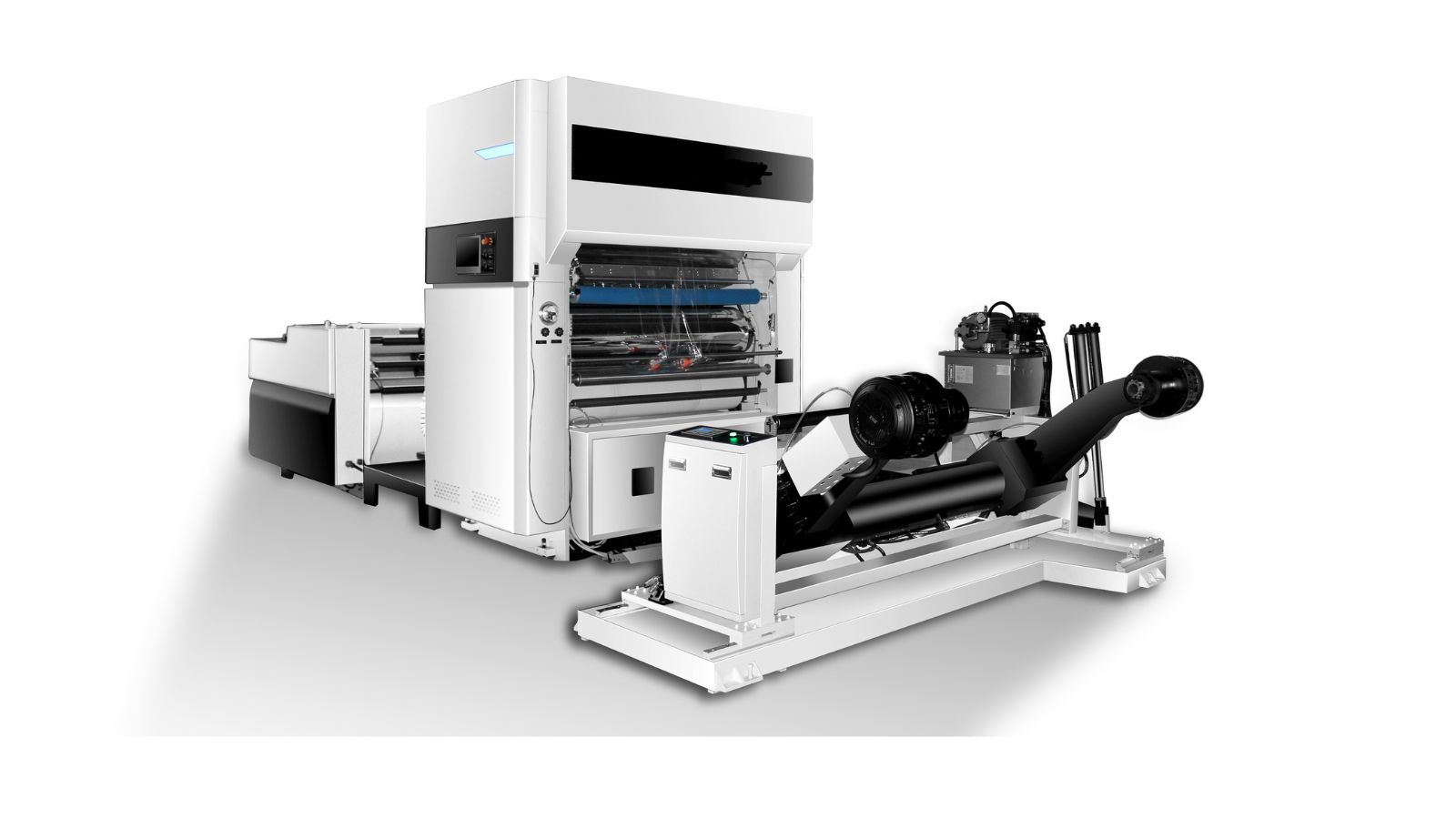

    NFM-ER1080 Roll to Roll Laminating Machine
    380V Fully Automatic Water Based And Thermal Film Laminating Machine Roll To Roll

    Features

    NFM-ER fully automatic roll to roll high-precision and multi-duty lamination as a professional equipment used for plastic film laminating on the surface of paper printer matter.
    * Water-based gluing(waterborne polyurethane adhesive)dry laminating.(water-based glue,oil-based glue,non-glue film)
    * Thermal laminating(Pre-coated/thermal film)
    * Film:OPP,BOPP,PET,PVC,METAL film,PP,etc.
    Technical Parameters
    NFM-ER Roll to Roll Laminating Machine
    Model
    NFM-ER800
    NFM-ER1080
    NFM-ER1380
    Max Paper Width
    800mm
    1080mm
    1380mm
    Min Paper Width
    300mm
    300mm
    300mm
    Max Rewinding Diameter
    1500mm
    1500mm
    1500mm
    Max Unwinding Diameter
    1500mm
    1500mm
    1500mm
    Maximum Rewind
    Load Capacity
    1200kg
    1200kg
    1200kg
    Maximum Unwind
    Load Capacity
    1200kg
    1200kg
    1200kg
    Paper Thickness
    80-600gsm
    80-600gsm
    80-600gsm
    Speed
    10-110m/min
    10-110m/min
    10-110m/min
    Film Thickness
    (Common Micrometer)
    10/12/15
    10/12/15
    10/12/15
    Common Glue Thickness
    4-10gsm
    4-10gsm
    4-10gsm
    Pre-Gluing Film Thickness-g/m2
    1005,1006,1206
    (1508 and 1208 for deep embossing paper)
    1005,1006,1206
    (1508 and 1208 for deep embossing paper)
    1005,1006,1206
    (1508 and 1208 for deep embossing paper)
    Main Motor Power
    5kw
    5kw
    5kw
    Roll Working Pressure
    15Mpa
    15Mpa
    15Mpa
    Cable Thickness
    25mm2
    25mm2
    25mm2
    Weight
    7000kgs
    7500kgs
    8500kgs
    Dimension(Layout)
    7500*2800*3170mm
    7500*3000*3170mm
    7500*3000*3170mm
    Loading
    20 foot
    20 foot
    40 foot
    Customer
    Company Profile
    Why Choose Us
    Product Packaging
    FAQ
    Q1: Are you a manufacturer or a trading company?
    A: Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
    Q2. What is the machine warranty?
    A: One year.After the warranty,we still provide technical support to buyer at low cost.
    Q3. What is the production time while placing order?
    A: Normally about 10-20 days.
    Q4. What is the delivery time?
    A: 15-30days after deposit.
    Q5. Can your company handle shipping for customers?
    A: Yes,just give us destination sea port or container yard.
    Q6. Does the packing strong?
    A: Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
    Q7. How about the machine installation and training?
    A: 1)We provide training in our factory for free
    2)We can send technicians (engineers) to your factory for installation and training.
    You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
    Q8. Do you have machines in stock?
    A: For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
    Q9. How can you assure the machines’ quality?
    A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty,we will give spare parts for free if machine has any problem.
    Q10. Do you inspect machines or test running before packing?
    A: Of course we do.We have QC department to debug the machine before packing.
    If you want to use specific material to do the test running,you need to pay for the cost of the material.
    Q11. What’s the payment term?
    A: T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
    Q12. Do you accept factory visiting?
    A: Warmly welcome for your visiting.
    Q13. How many years are you in printing field?
    A: The Shanghai company since in 2008,the factory is more than 25 years.
    Q14. How many clients do you have?
    A: We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
