TBT 50/10D Ellipse Perfect Glue book Binding Machine
Features
The cover feeder adopts a vertical structure to ensure accurate and
reliable cover supply. The embossing wheel is provided with the
non-stop fine adjustment function. The delivery mechanism adopts a
horizontal mode for better protection of book back forming, This
binder can used for either thread or perfect binding,so it' s an
ideal device for perfect or thread book bind-ing in various
printing house and university printing offices. The binder adopts
many advanced technologies like speed control by frequency
variation, PLC, two closed loop temperature control, photo
electrical identifica-tion, automatic detection control and touch
screen.The whole transmission system adopts the fully-en-closed
gear to ensure stable and reliable transmis-sion. The back glue is
provided with before/after glue stop function and the adjustment of
milling back flute, glue pot and cover feeder is provided with
digital display function.
Technical Parameters
Max.size of book | 380*265(Single unit)/450*153 |
Min.size of book | (double)(32k thirty-twomo,two-up)165*110mm |
Covering thickness | 2-50mm |
Max.Binding Speed | 4000Books/Hour |
Binder Number | 10 |
Total Power of Machine | 13.5KW |
Overall Dimensiones of Machine | 4900*1920*1490mm |
Weight | 4500Kg |
Configuration
Vertical type stacking mechanism
Covering adopts vertical type stacking structure, with the function
of digital display for raising and lowering of the paper bench and
the adjustment of covering manner.
Book-collecting mechanism
Horizontal book-falling of book-collecting mechanism better
protects the shaping quality of book back; And the stacking
mechanism has its stacking height ranging from20~ 100mm.
Holding and striking mechanism
The holding and striking mechanism is controlled by
sever-Back-gluing pot al cams, ensuring ideal shaping effect, with
binding thick-ness up to 2~50mm.
Back-gluing Pot
Back-gluing pot has the glue -ending function, minimizing ness up
to 2-50mm the glue threads.
Electricity
The electricity is designed according to international safety
standards, with visualized and straight forward interface as well
as easy operation; The interface has a failure display function
easy to clean trou-bles and an automatic maintenance & prompt
function,ensuring the normal running of the equipment.

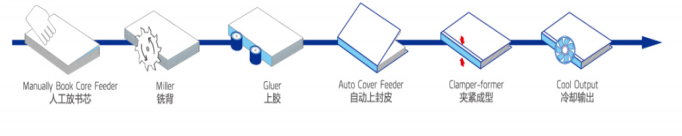

Production Process
