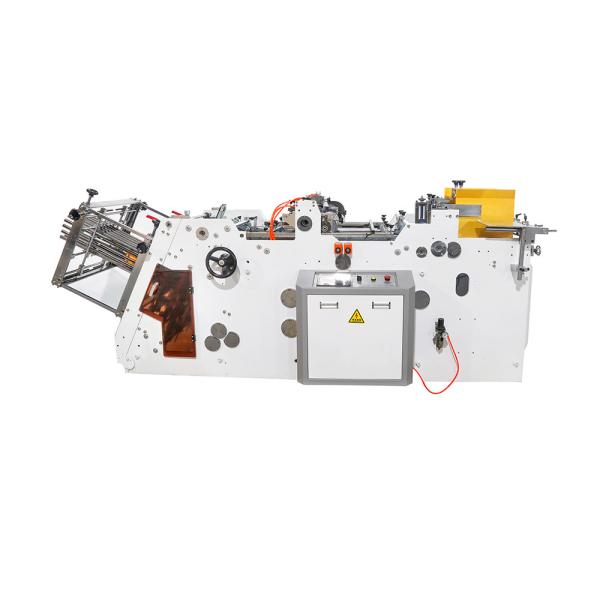

    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : HBJ-D1200
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 45 Set/Sets per Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min

    Products Description
    HBJ-D1200 Automatic Paper Carton Erecting Forming Machine

    Features

    HBJ-D is an ideal choice to produce hamburger boxes,French fries box,food tray,lunch box,Chinese noodle box,hot dog box,etc.It adopts micro-computer,PLC,alternating current frequency converter,the vacuum-sucking paper feeding,auto gluing,automatic paper tape counting,and chain drive.All of these main parts and electric control system adopts imported brand to guarantee steady working,precise positioning,
    smooth running,safety and reliability operation.
    Technical Parameters
    Automatic Paper Carton Erecting Forming Machine
    Type
    HBJ-D1200
    Production capacity
    80-320pcs/min
    Suitable Material
    200-600gsm card paper,PE coated paper,
    kraft paper, corrugated paper
    length
    L100-450mm,degree:5°-40°
    width
    B100-400mm Height H15-200mm
    Total Power
    6.25KW
    Total Weight
    2.5T
    Overall Dimension
    3600 x 1850 x 1700 mm
    power source
    380V 50HZ
    Configuration
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    To improve the feeding paper stability and change moulds more convenient.We use wider belt instead of two narrow belts.Narrow belt is easily abrased by papers.Also you should adjust the distance of two belts when you change the moulds.For wide paper,it is more endurable and don’t need be adjusted.
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    In order to feed paper more automatically,we use both PLC operations with photoelectric sensor and servo motor to control the paper feeding part.It has two advantages.
    1.It makes feed paper part easily operate when you change the moulds.The old design is adjusted by cam. When you change the different size of moulds,we need replace different size of cams.It is very complex and takes much time for change.
    2.It makes paper feeding part more smoothly and fluently working.The old design is easily missing paper feeding when machine running.
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    To fill the water food grade glue into the glue container and the cut sponge dip some of glue, and then point on the surface of paper.
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    The frame of collecting box is separated into three parts, each parts can be opened. It is more easier for changing moulds or repairing.
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    It adapts counting paper tape equipment to count product quickly and accurately.

    Application

    It can make more than 10 types boxes. If the box is not in blow list, please show us your sample.
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    Customer
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    Company Profile
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    Why Choose Us
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    Product packaging
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    HBJ-D1200 Automatic Paper Carton Erecting Machine 320pcs/Min
    FAQ
    Q1: Are you a manufacturer or a trading company?
    A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.
    Q2. What is the machine warranty?
    A: One year. After the warranty, we still provide technical support to buyer at low cost.
    Q3. What is the production time while placing order?
    A: Normally about 10-20 days.
    Q4. What is the delivery time?
    A: 15-30days after deposit.
    Q5. Can your company handle shipping for customers?
    A: Yes, just give us destination sea port or container yard.
    Q6. Does the packing strong?
    A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
    Q7. How about the machine installation and training ?
    A: 1)We provide training in our factory for free
    2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.
    Q8. Do you have machines in stock?
    A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
    Q9. How can you assure the machines’ quality?
    A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will
    give spare parts for free if machine has any problem.
    Q10. Do you inspect machines or test running before packing?
    A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material.
    Q11. What’s the payment term?
    A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
    Q12. Do you accept factory visiting?
    A: Warmly welcome for your visiting.
    Q13. How many years are you in printing field?
    A: Shanghai company is 12 years old, the factory is more than 20years.
    Q14. How many clients do you have?
    A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
