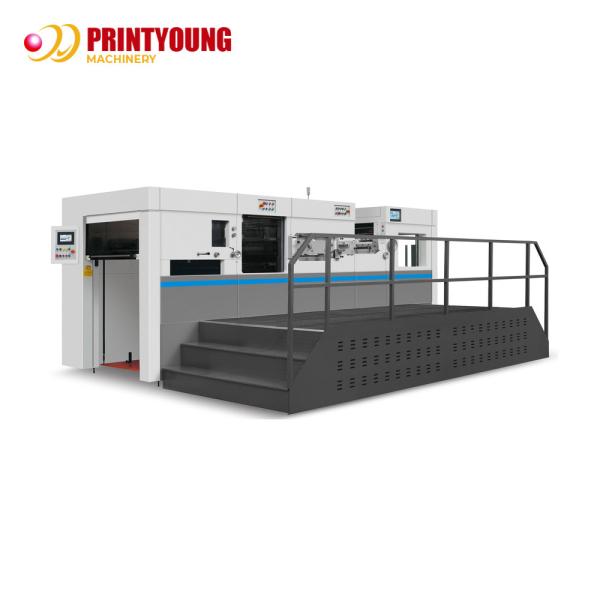

    Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : PRY-1050CE
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Flatbed Corrugated Cardboard Paper Die Cutting Machine With Stripping

    Products Description

    Technical Parameters
    PRY-1050CE Automatic Die-Cutting Machine with Stripping
    Max.Sheet Size
    1050×750mm
    Min.Sheet Size
    400×360mm
    Max.Die Cutting Size
    1040×720mm
    Gripper Margin
    9-17mm
    Dimension of Inner Plate Frame
    1080mm×745mm
    Sheet Size
    80~600g/㎡
    Precision of Die Cutting
    ≤±0.1mm
    Max.Working Pressure
    300t
    Max.Working Speed
    7500s/h Die Cutting
    Max.Paper Feeding Stacking Height
    1600mm(Including Wooden Pallet)
    Max.Paper Collecting Stacking Height
    1400mm(Including Wooden Pallet)
    Main Motor Power
    11kw
    Total Weight of Machine
    About 17t
    Full-Load Wattage
    16.9 kw
    Whole Machine Dimension
    7700mm(length: including pre-feeding track) × 4600mm
    (width: including the pedal) × 2400mm
    Configuration

    Feeder, Paper Feeding

    * Precision feida head that adopts European manufacturing technology, can be used for card paper, corrugated paper and grey board
    * Four suction and four sent, the suction angle and height can be adjusted according to the deformation of paper
    * Unique paper receiving mechanism, suitable for different deformed papers
    * High-speed feida head is specially manufactured for special aluminum alloy material, and all parts are imported
    * Dual-feida head anti-collision detection device

    * Main and auxiliary paper feeding, can switch without stopping the machine
    * A set of pre-feeding mechanism (optional)
    * Fish scale type paper feeding, smooth and accurate
    * Micro-adjusting mechanism for paper feeding platform, can be adjusted without stopping the machine
    * Two-purpose paper feeding machine
    * A set of auxiliary paper support device and two sets of paper supporting board


    Conveying Paper Platform

    *Electromechanical dual-sheet detector
    *Adopt advanced control system to control the speed of     conveying device, making paper feeding smoothly and reducing collision
    *Conveying paper platform can be controlled     separately, and vacuum conveying paper platform is optional

    *Front gauge detection,to guarantee the arrival rate of paper
    *Adopt left/right dual-push pull gauge way to meet different printing and alignment requirements

    Torque Limiter, Intermittent Segmentation Main Motor Lubrication System

    Taiwan high precision intermittent segmentation ensure Taiwan made automatic oil pump cooling circulation system
    high positional precision for long time usage to ensure main motor lubrication of high speed for a long time
    Taiwan torque limiter can accurately protect the artifical Equipped with oiil pressure gauge and with oil pressure alarm device
    operation accident to guarantee the people and machine
    safety by its sensitive limit protection performance.

    Electrical Parts

    *Man-machine interactive touch function, can set different long pull and short pull.
    *The alarm will be triggered when the foil is shorter than 6cm.
    *The computer deal with foil monitoring system,used to display remaining and have used foil length.
    * Machine with full set of Schneider (French) Electric components and PLC control system ,ensure machine running stability.

    Stripping Part (Front) Stripping Part(The Fourth Side of the Waste Paper)

    *Adopt upper and lower dual-frame stripping mechanism *Afrer get the paper , tooth raw get off the last side of the
    *Adopt male/female template to realize various stripping waste paper, then use belt feeding side face,in order to
    *Adopt central positioning device that matches with the achieve the purpose of total four sides stripping
    die cutting part to reduce plate replacing time

    Paper Collection Part

    *Automatic paper aligning device and two blowers for paper collection can ensure neat collection of thin and thick papers
    *Paper collection part with touch screen control,it is convience for operation and has data display, and all operations can be performed through the touch screen
    *Paper collection part is equipped with control panel to realize more personalized operation
    *Paper collection photoelectric device, to ensure     neat paper collection
    *Automatic lift control system of paper collection platform
    *Manual auxiliary paper collection system
    *The main chain protection device
    *Prevent the paper returning device
    *Equipped with non-stop device
    *Paper collecting part with a 10.4 inch screen ,can control whole machine
    Customer
    Company Profile
    Why Choose Us
    Packaging&Shipping

    FAQ

    Q1: Are you a manufacturer or a trading company?

    A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

    Q2. What is the machine warranty?

    A: One year. After the warranty, we still provide technical support to buyer at low cost.

    Q3. What is the production time while placing order?

    A: Normally about 10-20 days.

    Q4. What is the delivery time?

    A: 15-30days after deposit.

    Q5. Can your company handle shipping for customers?

    A: Yes, just give us destination sea port or container yard.

    Q6. Does the packing strong?

    A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

    Q7. How about the machine installation and training ?

    A: 1)We provide training in our factory for free;
    2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

    Q8. Do you have machines in stock?

    A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
