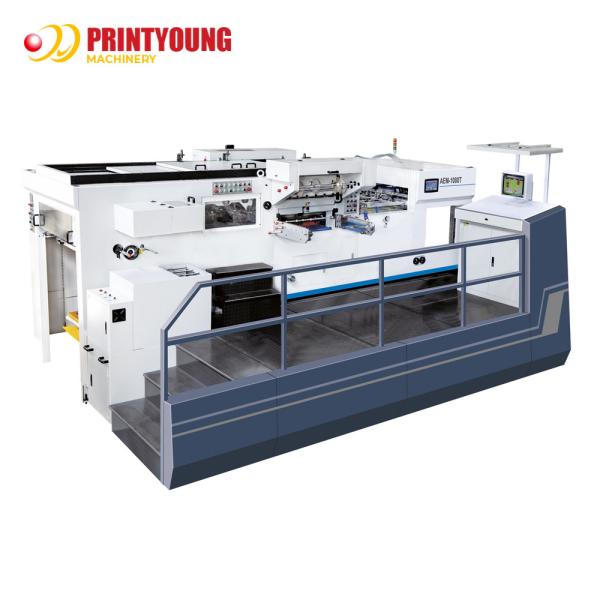

Hot Foil Stamping Flatbed Bronzing Die Cutting Machine Crooked 7000S/H

Ask Lasest Price
Brand Name :	PRINTYOUNG
Model Number :	AEM-1080T
Certification :	CE
Price :
Payment Terms :	L/C, T/T
Supply Ability :	10 Set/Sets per Month
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

Hot Foil Stamping Flatbed Bronzing Die Cutting Machine Crooked 7000S/H

Products Description

Features

★ Complete design, accurate installation, high stability, high security, low noise.
 ★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
 ★ High precision intermittent mechanism, high cutting precision, running steadily.
 ★ Adopt European feeder, suction adjustable, stable, precise, good paper applicability.
 ★ Non-stop feeding, pre-stacking and delivery mechanism can shorten the auxiliary time, improve the efficiency.
 ★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
 ★ Pneumatic die locking device, die frame fixed more steadily, accurately and time saving.
 ★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
 ★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
 ★ Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.
 ★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
 ★ Adopt imported server control system for foil stamping, feeding and collecting aluminum foil accurately.
 ★ Adopt industrial tablet PC, touch screen input data, realize automatic programming, greatly saving aluminum foil.
 ★ Temperature control system has 12 heating area, temperature setting separately, thermostatic control.
 ★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
 ★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
 ★ Drawer type foil feeding mechanism, improve efficiency and ensure safety.

Technical Parameters

Automatic Hot Stamping and Die Cutting Machine
Max paper size	1080 x 780 mm
Min paper size	400 x 330 mm
Max cutting size	1075 x 770 mm
Die frame inner size	1100 x 790 mm
Cutting plate	1080 x 780 mm
Max stamping size	1060 x 760 mm
Min gripper edge size	7 mm
Cutting precision	≤±0.125 mm
Bronzing precision	≤±0.125 mm
Max cutting speed	300 T
Max cutting speed	7000 S/H
Max bronzing speed	6500 S/H
Foil roll max diameter	Φ250 mm
Vertical foil width	15~1060 mm
Horizon foil width	15~760 mm
Vertical foil axle	3 pcs
Horizon foil axle	2 pcs
Heating area	12 pcs
Temperature range	50~199 ℃
Pre-stacking height	1550 mm
Delivery stack height	1500 mm
Application	White board: 0.1～2 mm Corrugated paper: ＜4 mm
Main motor power	11 KW
Heating area power	24 KW
Total power	60 KW
Dimension L (+ pre-stacking )x W(+platform)x H	5600(+1600)x2550(+1400)x2600 mm
Weight	17 T

Hot Foil Stamping Flatbed Bronzing Die Cutting Machine Crooked 7000S/H

Configuration

Feeding Section

★European technic precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion.
 ★Double side lay (pull and push).
 ★Feeding device fine tuning, non-stop adjust.

★Electronic double detector.
 ★Main, secondary feeding device no-stop switch.
 ★Wear-resisting PU pressing wheel.
 ★Dual purpose loader.
 ★Feeding time fine tuning device.

Main Machine Section

★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
 ★Alloy crankshaft with special process treatment.
 ★Wear resisting worm, worm gear.
 ★Convenient die flipping device.
 ★High precision intermittent machanism.
 ★Pneumatic clutch from Italy.

★Japanese SMC rotary joint.
 ★Import gripper bar chain.
 ★Pneumatic die locking device.
 ★High hardness, strength Ti-Al alloy gripper.
 ★Precise pressure adjust device.
 ★PLC and man-machine interface from Taiwan.
 ★Additional gripper 1set,die frame 1 set.

Hot Stamping Section

★Industrial tablet PC, screen touch input data, realize automatic program optimization, saving foils.
 ★Imported motor and control system, precisely feeding foil.
 ★Separate setting temperature of 12 heating area, thermostatic control.
 ★Electronic pressure control system, during

bronzing, if there is no paper, there is no pressure.
★Vertical, horizon foil separate blowing device.
 ★Vertical, horizon foil break detector system.
 ★Separate waste recycle device and recycle box.
 ★Pull-out type foil feeding mechanism, improve efficiency, ensure safety.

Delivery Section

★Automatic aligning device, double blowing device ensure the paper can be well collected whether thick or thin.
 ★Digital display touch screen in delivery section makes operation convenient
 ★Control panel for human-friendly operation.

★Optoelectronic sensor makes the stack neat.
 ★Delivery automatic lift control system.
 ★Secondary manual delivery.
 ★Main chain protection device.
 ★Roll back prevent device.
 ★Non-stop delivery device.

Customer

Company Profile

Why Choose Us

Product packaging

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material.

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
