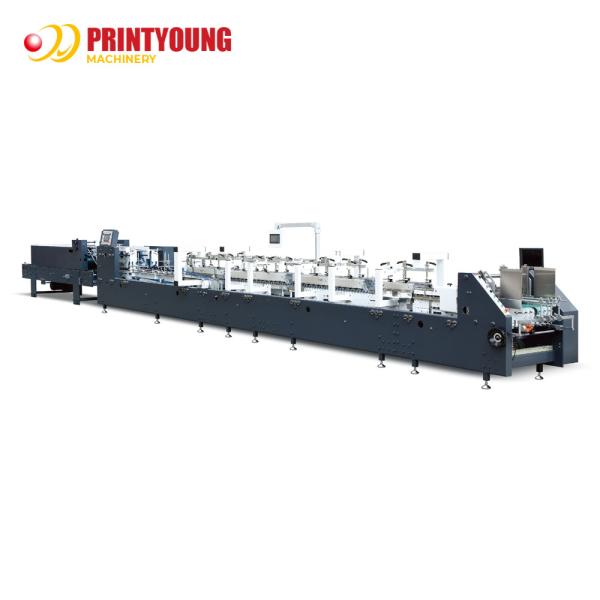

    6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : 800CS
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 5 Set/Sets per Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    6 Corner Corrugated Folder Gluer Machine 350m/Min 15KW

    Products Description
    Technical Parameters
    Automatic High Speed Gluer Folder
    CS Series
    800CS
    Carton Board Max.
    800 MM
    Corrugated Flute Type
    A,B,E
    Speed Max.
    350 m/min
    Inching Speed
    10 m/min
    Thickness of Folded Box Max.
    20 mm
    Blank Width
    800 mm
    Electrical Connected Load
    15 kW
    Compressed Air
    6 bar
    Air Compressor Capacity
    10 m³/h
    Air Tank Capacity
    60 L
    Length*Width*Height
    16.5 *1.4*1.8m
    Net Weight
    6T

    Common type and size
    Size of bottom lock carton
    Carton type
    A
    75-800
    146-800
    160-800
    B
    60-800
    90-800
    90-800
    C(Min)
    35
    20
    40
    D(Min)
    ---
    30
    35
    E(Min)
    ---
    40
    20
    Configuration

    1.Feeding 2.Aligner Section

    Rail width can be horizontally adjusted and set by seven The paper board sent from feeder section will be corrected
    pieces 30mm thickened feeding belt and 10mm metal by aligner section to ensure transmission accurately.
    board.Embossing drive wheel guide the feeding section Pressing drive pressure can be adjusted up and down to
    belt, side feed gates in the right and left are adjustable accommodate different paper board thickness.
    according to the products.

    3.Pre-Folding Section 4.Lock Bottom Section

    Special first folding line pre-fold 180°. third line 170°, Complete set of folding hooks and helixes to fold the front flaps
    which perfectly meeting the requirements of automatic of the blank smoothly and accurately.Sectional-type upper belt
    packaging industry. board with special design, which can be adjusted according to
    the products type ,no need to tension belt.

    5.Lower Gluing Tank 6.Folding

    lower gluing tank is large volume.Optional lower gluing The Second and fourth folding line 180°.Folding and closing
    tank in the right and left side with large volume.Easy to section transmit from right and left side ,the belt speed can be
    remove and clean.Electronic upper gluing system by adjusted separately and correct the way of box running to ensure guns straightly delivery.

    7.Trombone Section 8.Transmission

    Up and down belt can be adjusted separately. Equipped with special additional sponge belt for the press
    Equipped with photo electronic counting device and of boxes valley part.Upper section moves back and forward,
    kicking paper device, which can press the paper after allowing for different box length. Pneumatic pressure regulator ,
    accounting and make it easy to pack . which can effectively ensure the uniform of fitting pressure,
    Also equipped with feeding paper inspection device. makes machine easy to adjust.
    Applications
    Customer
    Company Profile
    Why Choose Us
    Packaging&Shipping

    FAQ

    Q1: Are you a manufacturer or a trading company?

    A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

    Q2. What is the machine warranty?

    A: One year. After the warranty, we still provide technical support to buyer at low cost.

    Q3. What is the production time while placing order?

    A: Normally about 10-20 days.

    Q4. What is the delivery time?

    A: 15-30days after deposit.

    Q5. Can your company handle shipping for customers?

    A: Yes, just give us destination sea port or container yard.

    Q6. Does the packing strong?

    A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

    Q7. How about the machine installation and training ?

    A: 1)We provide training in our factory for free;
    2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

    Q8. Do you have machines in stock?

    A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

    Q9. How can you assure the machines’ quality?

    A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

    Q10. Do you inspect machines or test running before packing?

    A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

    Q11. What’s the payment term?

    A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

    Q12. Do you accept factory visiting?

    A: Warmly welcome for your visiting.

    Q13. How many years are you in printing field?

    A: Shanghai company is 12 years old, the factory is more than 20years.

    Q14. How many clients do you have?

    A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
