    Vacuum Transfer Slotting Carton Box Printing Machine 250pcs/min

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : PRY1224
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Vacuum Transfer Slotting Carton Box Printing Machine 250pcs/min

    Products Description
    Features
    ► The whole machine is designed and made according to high requirements with reliable and safety function; allows quick order changing and user friendly operation;
    ► Independent computer control is able to store different orders,enable quick order changing;
    ► Each working unit is motorized for open and close actions,with warning alarm system to ensure safety;
    ► The distance adjustment of the feeding roll,press roll,and netted roll are achieved by electric control;
    ► Central collection system for the dust and waste flakes
    ► With automatic zero setting and reset function;
    ► Driving gears are imported products,its grinding hardness is above 60 degrees;
    ► Adopted joint ring-free technology,to reduce abrasion and achieve precise printing result;
    ► Select the excellent materials and parts,all orders are made of the fine steel,with chrome plating and harden treatment;
    ► Adopted gear lubricant auto self-balance device,to keep the lubricant levels in each unit uniform at all times;
    Technical Parameters
    Fully Automatic Lead Feeder Flexo Three Color Printing Slotting Die Cutting Machine
    Max Machine Speed (pcs/min)
    250
    Economic Working Speed (pcs/min)
    200-220
    Max Feeding Size (mm)
    1200×2600
    Max Printing Size (mm)
    1200×2400
    Skip-feeding Size (mm)
    1400×2600
    Min Feeding Height (mm)
    350(low speed,full printing)
    Max Slotting Depth (mm)
    380
    Standard Plate Thickness (mm)
    7.2
    Suitable Cardboard Thickness (mm)
    2 - 11
    Main Motor Power (kw)
    30
    Total Power (kw)
    100
    Overall Dimensions (mm) L*W*H
    15000×4500×1800
    Configuration
    Vacuum Transfer Slotting Carton Box Printing Machine 250pcs/min
    Feeder Unit
    ►Continuous or skip feeding is available with counter;
    ►Main motor is protected from starting up when units are not fully closed and locked.
    ►Motorized backstop forward /backward and up/down position for easy and quick adjustment;
    ►Copy sun automation lead edge feeder with strong vacuum transfer for precise and stable feeding;
    ►Feeding roll is made of two-layer rubber,inner layer is soft and outer layer is hard,this makes inner layer more flexible and surface more wear-resistant,and reduce the flute damage of the cardboard;
    ►Dust remove system with brush and segmented vacuum sheets cleaner;Self-locked system adopts for adjusting feeding rolls gap,motorized and PLC control of feeder side guides;
    ►Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size cardboard.
    Vacuum Transfer Slotting Carton Box Printing Machine 250pcs/min
    Printer Unit
    ►Quick set and self locking pull collars.
    ►Automatic resetting after cleaning the printer.
    ►With four unit ceramic roller and doctor blade.
    ►ceramic roller LPI according to customer requirement.
    ►with six units ceramic roller and four units doctor blade.
    ►Printing register is digitally controlled by motor and PLC.
    ►Transverse register is also digital controlled by motor and PLC ±10mm.
    ►Cleaning function can be automatically switched to ensure the ink recycling thoroughly.
    ►Pneumatic clutch is adopted on the anilox roll to:
    (1)Make the roll stop when the unit is not printing;
    (2)Allow units which are not in use to be washed up while running;
    (3)Make the roll run at the same speed as the main motor when the unit is printing;
    (4)Reduce the possibility of damage to the rubber roll and the anilox roll for inproper operation.
    ►A fixed device of printing register and brake of electromagnetic clutch is used when the unit is opened.upon closing the unit,the positions are precisely restored so the unit is ready for production without adjustment.
    ►Mounting roller with left and right both of side locking device,let the mounting position more accurately.
    Vacuum Transfer Slotting Carton Box Printing Machine 250pcs/min
    Slotting Unit
    ►Motorized controls of the slotting bosses caliber.
    ►The first pre-creasing,the cardboard not be damaged after prepressing.
    ►Upper creasing roll covered by anvil ring,so cardboard is not damaged easily.
    ►Slotting register and height of carton box are digital controlled by motor and PLC.
    ►Flexible angle cutting knife can cut 3 or 5 or 7 ply cardboard with no adjustment,easy to operate.
    ►Single shaft five blades slotting ,an internal gear adjusts the height of the carton box and prevents the lubricating oil from spilling or leaking onto the cardboard
    ►Upper boss and lower boss are coupled to keep the two knives aligned while moving,which is helpful to prolong service life.
    ►Slotting bosses move along liner lead rails and are driven by lead screws for flexible and precise movement.
    ►Transversal movement of the pre-creasing rolls,and slotting bosses’ are digital controlled by motor and PLC
    ►A protective device prevents the slotting knife from crashing when the height of the carton box is adjusted.
    Vacuum Transfer Slotting Carton Box Printing Machine 250pcs/min

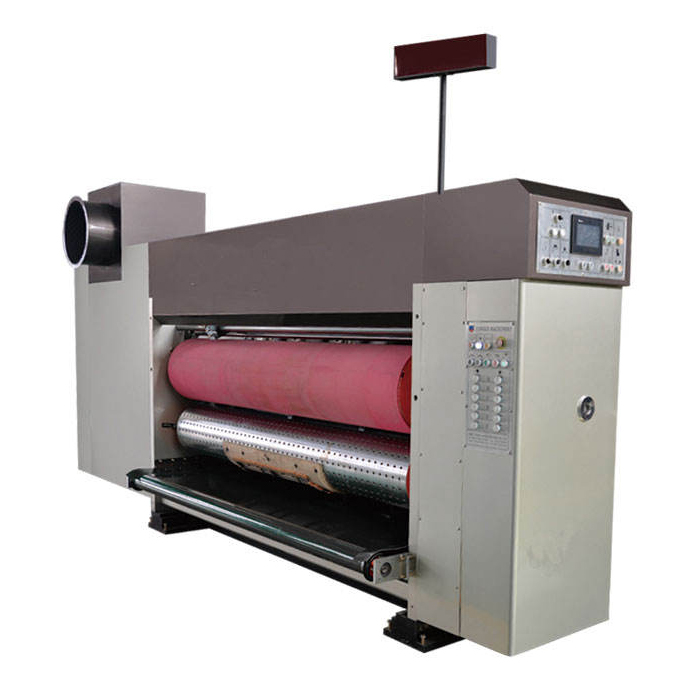

    Die Cutting Unit
    ►With separate servo motor.
    ►Anvil cover is Depride made from Germany
    ►Side to side oscillation of anvil drum(45mm)
    ►Die-cutting register is digitally controlled by motor and PLC
    ►Motorized caliper adjustment between anvil roll and die drum.
    ►Anvil trimmer to keep surface of the anvil covers flat and smooth.
    ►The die drum’s transverse movement can prolong the service life of anvil cover.
    ►The die-cut cylinder lateral register is digitally controlled by motor and PLC,rang about±10mm
    ►Anvil rubber roller speed compensation adopted independent motor for driving to control the rubber roller speed,the compensation scope is ±3mm.
    ►Auto speed compensation system controlled by the independent motor can achieve the superb die accuracy.
    Customer
    Company Profile
    Why Choose Us
    Packaging&Shipping

    FAQ

    Q1: Are you a manufacturer or a trading company?

    A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

    Q2. What is the machine warranty?

    A: One year. After the warranty, we still provide technical support to buyer at low cost.

    Q3. What is the production time while placing order?

    A: Normally about 10-20 days.

    Q4. What is the delivery time?

    A: 15-30days after deposit.

    Q5. Can your company handle shipping for customers?

    A: Yes, just give us destination sea port or container yard.

    Q6. Does the packing strong?

    A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

    Q7. How about the machine installation and training ?

    A: 1)We provide training in our factory for free;
    2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

    Q8. Do you have machines in stock?

    A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

    Q9. How can you assure the machines’ quality?

    A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

    Q10. Do you inspect machines or test running before packing?

    A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

    Q11. What’s the payment term?

    A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

    Q12. Do you accept factory visiting?

    A: Warmly welcome for your visiting.

    Q13. How many years are you in printing field?

    A: Shanghai company is 12 years old, the factory is more than 20years.

    Q14. How many clients do you have?

    A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
