Home > Folder Gluer Machine >

Stable 220m/min Automatic Folder Gluer Machine Easy Operation

Product Categories

Folder Gluer Machine [81]
Film Laminating Machine [98]
Flute Laminating Machine [50]
Paper Die Cutting Machine [111]
Paper Bag Making Machine [69]
Automatic Paper Cutting Machine [63]
UV Coating Machine [37]
Book Binding Machine [41]
Offset Printing Machine [27]
Flexo Printing Machine [38]
Rotogravure Printing Machine [17]
Screen Printing Machines [32]
Corrugated Box Machine [17]
Printing And Packaging Machines [143]
Face Mask Making Machine [3]
Paper Processing Machinery [131]
Machine Parts [4]

Shanghai Printyoung International Industry Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Stable 220m/min Automatic Folder Gluer Machine Easy Operation

Ask Lasest Price
Brand Name :	PRINTYOUNG
Model Number :	ZH-600
Certification :	CE
Price :	Discussible
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	500 Units per year
Delivery Time :	2 Weeks

Add to Cart

Product Details
Company Profile

Stable 220m/min Automatic Folder Gluer Machine Easy Operation

ZH-600 Easy Operation Stable Automatic Folder Gluer Machine with Straight Line

Feature:

1. For many years the main push edge paste box machine, cost-effective;

2. Stability, generality and reasonable flexibility;

3. life grinding, counting and other functions are readily available.

Line speed: 0—220m/min adjustable
Usage paper: 210-660g/m²paperboard
Box forming:Either side folds, either sides pre-fold, and crash lock bottom
Paperboard Feeding: Continuous automatic
Way of folding: First, second and fourth lines fold 180 degree, third line fold 135 degree.
Glue Type: Cold glue
Power: three-phase, AC380V, (600G)3.2kw (700G)3.2kw (800G)4.5kw
Weight: 1600kg,1800kg,2000kg
Dimension: (600G)8500×1200×1300mm (700G)8500*1350*1300mm (800G)10000*1500*1300mm
The counting range: 0～999999(full-automatic)

Technical Parameters

Line Speed	0-220m/min continuous adjustment
Suitable paper	210-600g/m² paperboard
Box Forming	single side gluing or both side gluing and pre-folding , crash lock bottom
delivery	Paper feeding
Glue	Cold glue
Power	380V 3.2KW
Weight	1.6t
Dimension	8.51.21.3M
Steel frame Packing Size	8.94m³ 1585/1817kg
Feeding Part	27009501235=3.17 m³ 742/827kg
Folding Part	218511001235=2.97m³ 443/520kg
Conveyor Part	26609501110=2.80 m³ 400/470kg

Stable 220m/min Automatic Folder Gluer Machine Easy Operation

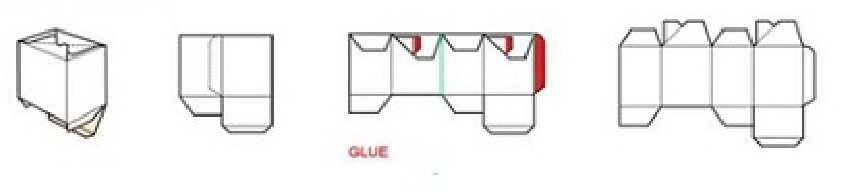

Box Type	A	B	C(min)	D(min)
Side-Glue Box(I)	110-600	60-500	50	10
Pre-Folding Box(I)	170-600	60-500	80	10
Crash Lock Bottom Box(II)	180-560	100-500	80	40

Stable 220m/min Automatic Folder Gluer Machine Easy Operation

Product display

Company Profile

Stable 220m/min Automatic Folder Gluer Machine Easy Operation

FAQ

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own
factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support
to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is
suitable for long-distance road transportation and various types of
weather conditions. A full set of maintenance and operation manuals
is included.

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send
technicians (engineers) to your factory for installation and
training. You shall pay the round trip air fare and accommodations,
plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For
special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before
delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine
before packing. If you want to use specific material to do the test
running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than
20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents
in South Africa, Morocco and Italy.
