Pry-AEM-800 Jigsaw Puzzle flat-bed die cutting machine
Features:
★ Complete design, accurate installation, high stability, high
security, low noise.
★ Adopt worm, worm gear, crankshaft transmission, high cutting
pressure, high durability.
★ High precision interval mechanism, high cutting precision,
running steadily.

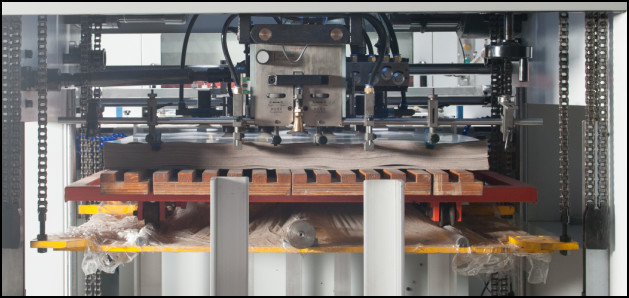

★ Adopt European feeder, suction adjustable, steadily, precise,
good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten
the auxiliary time, improve the efficiency.
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes
installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily,
accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper
positioning more accurate,
★ Double, crooked, empty optoelectronic position control, ensure
the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic
components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running
situation, makes machine adjustment, trouble shooting more
convenient.
★ Cycling cooling oil supply system ensure the movement parts get
adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure
the movement parts get adequately lubricated to let better
durability.

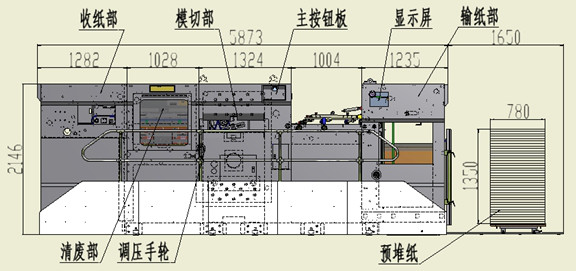

schematic diagram
Main technical parameters
| Max paper size: 800 x 620 mm |
| Min paper size: 340 x280 mm |
| Max cutting size: 770 x 600 mm |
| Die frame inner size: 820 x 628 mm |
| Cutting plate size: 826 x 628 mm |
| Min gripper edge size: 7 mm |
| Cutting precision: ≤±0.1 mm |
| Max cutting pressure: 200 T |
| Max cutting speed: 7000 S/H |
| Pre-stacking height: 1150 mm |
| Delivery stack height: 1000 mm |
| Application: |
| White board: 0.1～2 mm |
| Corrugated paper: ＜4 mm |
| Main motor power: 7.5 KW |
| Total power: 12.75 KW |
| Dimension : 【L(+ pre-stacking)x W(+ platform)x H】 |
| AEM-800: 4350(+1360) x 2000(+1300) x 1690 mm |
| AEM-800 weight: 8.5 T |
|
|
Details:
