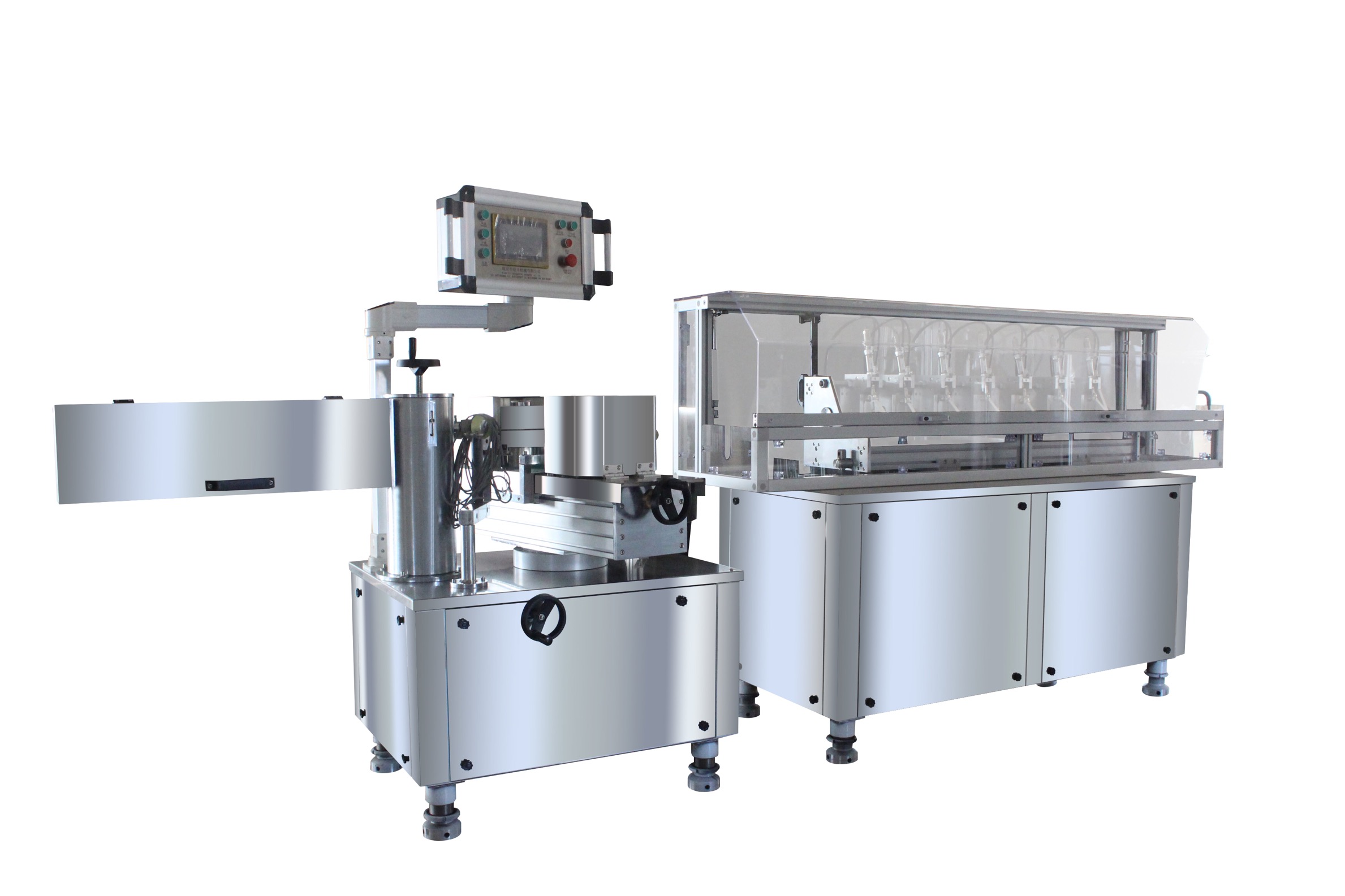

PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line

    Buy cheap PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line from wholesalers

    Buy cheap PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line from wholesalers
    • Buy cheap PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line from wholesalers
    • Buy cheap PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line from wholesalers
    • Buy cheap PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line from wholesalers

    PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : PRYXG
    Certification : CE
    Price : US 53200 ~ 55400 Set
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line

    1.PRYFQ-150 Paper Slitter Rewinder
    Click on the picture to jump to the product details page!
    PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line
    2.1.PRYXG-80 Paper Straw Machine
    Click on the picture to jump to the product details page!
    PRYXG 3 or 4 Layers Paper Drinking Straws Production Packing Line
    2.2.PRYXG-100 Paper Straw Machine
    Click on the picture to jump to the product details page!
    3.PRYHG-50 Paper Straws Drying Unit with Sterilization Function
    Feature
    1.Consist of 2 parts:narrow conveyor;drying & collecting part
    2.Hot air temperature:70~150℃(adjustable)
    3.Heating power:8kw
    4.Usage:accelerate removal of moisture and make paper straws stronger.
    4.PRYBZ-50 Individual Packing Machine
    Technical Parameters
    Straw Specification
    Standard Length
    150 ~ 260 mm
    Standard Diameter
    5 ~ 12 mm
    Packing Length
    210 ~ 315 mm
    Packing Model
    Paper Type
    Wrapping Paper
    Sealing Type
    3 Side Sealing
    Paper Width
    28 ~ 50 mm(According to Paper Straw OD)
    Production Speed
    Without Printing
    > 500 pcs/min
    Total Power
    1.5 kw
    Over Size
    1900 × 1000 × 1600 mm
    Weight
    400 kg
    Configuration

    Servo Driving Motor

    Traction roller:1set;Side sealing:1set;Cutting knife:1set.

    Straw Feeding Hopper

    Material:stainless steel frame
    Plexiglass:adjustable to match straw length
    Straw feeding device:
    induction and swing arm
    Feeding model:Cam drives the rubber roller to clamp the material

    Paper Unwinding Frame

    1Set
    Tension adjust:
    Analog automatic tension control
    Wrap paper roller core size:3 inch,and 4.7 inch

    Conveyor Belt

    1set
    synchronous reduction motor + controller
    Counter dam-brush:
    one set,lifting by pneumatic cylinder

    Sealing and Cutting Parts

    Lengthways sealing:sealing roller-1 couple, pressure adjusted by manual
    Horizontal:sealing roller-1 couple,pressure adjusted by manual,with cutting knife-one couple
    Material:mould steel
    Controller
    Counter:1set,HUALI Brand
    Controlling inverter:
    1.1KW Schneider
    Temperature controller:1set,KEQIANG Brand
    Electric parts:Schneider
    Application
    Individual packed with double colors logo.
    5.PRYBZ-100 Group Packing after Individual Packing
    Technical Parameters
    Type of Straw
    Paper Straw;PLA Straw;Plastic Straw
    Voltage
    220 V Single Phase 50 Hz
    Rated Power
    2 kw
    Tail Packing Speed
    15 packs per minute (adjustable)
    Max Diameter of Packing Film
    400 mm
    Max Packing Film Width
    300 ~ 650 mm
    Finished Bag Length
    250 ~ 480 mm
    Components
    Touch Screen ; Double Servo Motors ; Servo Driver
    Dimension
    2200 x 1800 x 1250 mm
    Weight
    400 kgs
    Application
    Q1.Are you a manufacturer or a trading company?
    A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
    Q2.What is the machine warranty?
    A:One year.After the warranty,we still provide technical support to buyer at low cost.
    Q3.What is the production time while placing order?
    A:Normally about 10-20 days.
    Q4.What is the delivery time?
    A:15-30days after deposit.
    Q5.Can your company handle shipping for customers?
    A:Yes,just give us destination sea port or container yard.
    Q6.Does the packing strong?
    A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
    Q7.How about the machine installation and training?
    A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
    Q8.Do you have machines in stock?
    A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
    Q9.How can you assure the machines’ quality?
    A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
    Q10.Do you inspect machines or test running before packing?
    A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
    Q11.What’s the payment term?
    A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
    Q12.Do you accept factory visiting?
    A:Warmly welcome for your visiting.
    Q13.How many years are you in printing field?
    A:The Shanghai company since in 2008,the factory is more than 25years.
    Q14.How many clients do you have?
    A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
