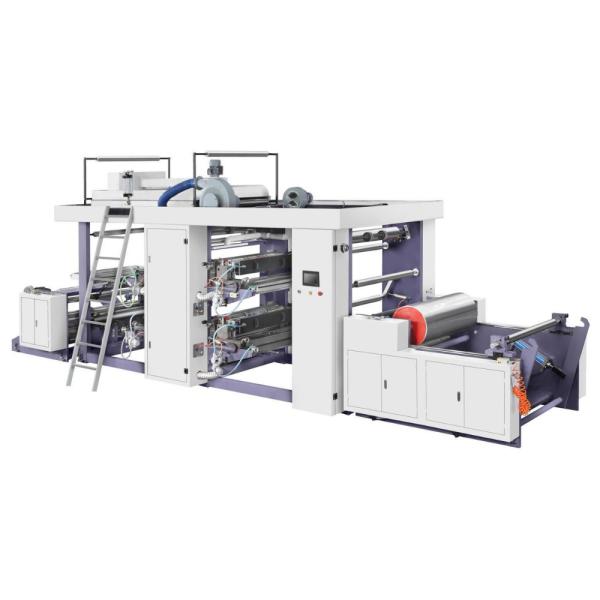

    ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : ZYT-1000-4
    Certification : CE
    Price : US 36,000 Set
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    ZYT-1000-4 Stackable Paper Bag Four Colors Flexo Printing Machine

    ZYT-1000-4 Four Colors Flexo Printing Machine
    Features
    1.The machine adopt with synchronous belt drive and hard gear face gear box.The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven (360º adjust the plate) gear driving the press printing roller.
    2.After printing,long running material space,it can make the ink drying easily,better results.
    Technical Parameters
    ZYT-1000-4 Four Colors Flexo Printing Machine
    Type
    ZYT-1000-4
    Max Printing Material Width
    1000 mm
    Max Printing Width
    960 mm
    Max Unwinding Diameter
    1300 mm
    Max Rewinding Diameter
    1300 mm
    Printing Length Range
    230 ~ 1000 mm
    Printing Speed
    5 ~ 100 m/min
    Register Precision
    ≤ ± 0.15 mm
    Thickness of Plate(Including the thickness of double sides glue)
    2.28 mm + 0.38 mm
    Dimension
    8200 * 2100 * 2500 mm
    Weight
    5.1 T
    Power
    21 kw
    Configuration

    Control Part

    1.Main motor frequency control
    2.PLC touch screen control the whole machine
    3.Reduce motor separate

    Unwinding Part

    1.Single work station
    2.Hydraulic clamp,hydraulic lift the material, hydraulic control the unwinding material width,it can adjust left and right movement.
    3.Magnetic powder brake auto tension control.
    4.Auto web guide

    Printing Part

    1.Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped.After that can run ink automatically.When the machine is opening,it will make alarm to start the auto lowering plate printing cylinder.
    2.Inking with ceramic anilox chambered doctor blade,ink pump circulation.
    3.High precision planetary gear oven 360° circulation longitudinal register.
    4.±2mm transverse register.
    5.Adjust inking press and printing pressure press by manual.

    Rewinding Part

    1.Back to back rewinding
    2.Pneumatic tension control
    3.2kw motor,vector frequency conversion control
    4.3 inch air shaft
    5.Hydraulic lowering the material

    Drying Part

    Adopt with external heating pipe,temperature display,electric current control,centrifugal blower bring the wind.
    Q1.Are you a manufacturer or a trading company?
    A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
    Q2.What is the machine warranty?
    A:One year.After the warranty,we still provide technical support to buyer at low cost.
    Q3.What is the production time while placing order?
    A:Normally about 10-20 days.
    Q4.What is the delivery time?
    A:15-30days after deposit.
    Q5.Can your company handle shipping for customers?
    A:Yes,just give us destination sea port or container yard.
    Q6.Does the packing strong?
    A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
    Q7.How about the machine installation and training?
    A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
    Q8.Do you have machines in stock?
    A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
    Q9.How can you assure the machines’ quality?
    A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
    Q10.Do you inspect machines or test running before packing?
    A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
    Q11.What’s the payment term?
    A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
    Q12.Do you accept factory visiting?
    A:Warmly welcome for your visiting.
    Q13.How many years are you in printing field?
    A:The Shanghai company since in 2008,the factory is more than 25years.
    Q14.How many clients do you have?
    A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
