PRY-2508PRO Single Pass Automatic Corrugated Carton Box Making Machine

    Buy cheap PRY-2508PRO Single Pass Automatic Corrugated Carton Box Making Machine from wholesalers

    Buy cheap PRY-2508PRO Single Pass Automatic Corrugated Carton Box Making Machine from wholesalers
    • Buy cheap PRY-2508PRO Single Pass Automatic Corrugated Carton Box Making Machine from wholesalers
    • Buy cheap PRY-2508PRO Single Pass Automatic Corrugated Carton Box Making Machine from wholesalers

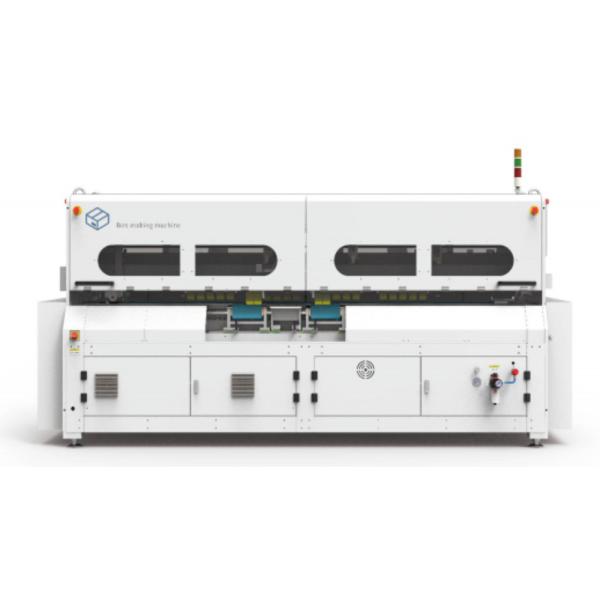

    PRY-2508PRO Single Pass Automatic Corrugated Carton Box Making Machine

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : PRY-2508PRO
    Certification : CE
    Price : US 73000 Set
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    PRY-2508PRO Single Pass Automatic Corrugated Carton Box Making Machine

    PRY-2508PRO Carton Box Making Machine
    Features
    1.One operator is enough

    One person is enough for operating,saving labor.

    2.Without mold

    No additional tools or die-cutting mold,servo motor drive to accomplish all settings.

    3.Quick order change

    Only need 1 ~ 50 seconds to change the order,the minimum order quantity is 1,shorten the delivery cycle.

    4.Wide application field

    Cardboard size up to 2500mm width with unlimited length,oversized cardboard boxes can be made easily.

    5.Multiple functions

    Machine can be used for box production,also can be used for cardboard slitting.Cardboard feeding,slotting,scoring,slitting,cutting,trimming,all in one compact machine.

    Technical Parameters
    PRY-2508PRO Carton Box Making Machine
    Corrugated Board Type
    Single Wall & Double Wall
    Corrugated Board Thickness
    2 ~ 12 mm
    Board Density Range
    <= 1200 g/m2
    Max Board Size
    2500 mm (Unlimited Length)
    Min Board Size
    200 (W) * 650 (L) mm
    Production Speed
    500 ~ 800 pcs/h
    Slotting Knife
    2 * 500 mm
    Vertical Cutting Knife
    4 (with knife sharpening function)
    Creasing Wheel
    4
    Horizontal Cutting Knife
    1
    Power Supply
    380V +/-10% , max 8kw , 50/60Hz
    Air Pressure
    0.6 ~ 0.7 Mpa , 75 L/min
    Dimension
    3610 * 2050 * 2090 mm
    Gross Weight
    3400 kg
    Handhole on Box Sides
    200 * 150 mm
    Box Styles
    150 +
    Major Function
    15.6 inch HMI,good visual effect and convenient operation.
    Continuous cardboard feeding system.Leading edge feeder, 20~50 sheets can be loaded.
    Horizontal slotting & scoring.
    Vertical scoring & slitting. Powered slitting knives. Cardboard cutting perfectly and neatly.
    Powered horizontal trimming knife.
    Handle hole die cutting.
    Application
    Q1.Are you a manufacturer or a trading company?
    A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
    Q2.What is the machine warranty?
    A:One year.After the warranty,we still provide technical support to buyer at low cost.
    Q3.What is the production time while placing order?
    A:Normally about 10-20 days.
    Q4.What is the delivery time?
    A:15-30days after deposit.
    Q5.Can your company handle shipping for customers?
    A:Yes,just give us destination sea port or container yard.
    Q6.Does the packing strong?
    A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
    Q7.How about the machine installation and training?
    A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
    Q8.Do you have machines in stock?
    A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
    Q9.How can you assure the machines’ quality?
    A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
    Q10.Do you inspect machines or test running before packing?
    A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
    Q11.What’s the payment term?
    A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
    Q12.Do you accept factory visiting?
    A:Warmly welcome for your visiting.
    Q13.How many years are you in printing field?
    A:The Shanghai company since in 2008,the factory is more than 25years.
    Q14.How many clients do you have?
    A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
